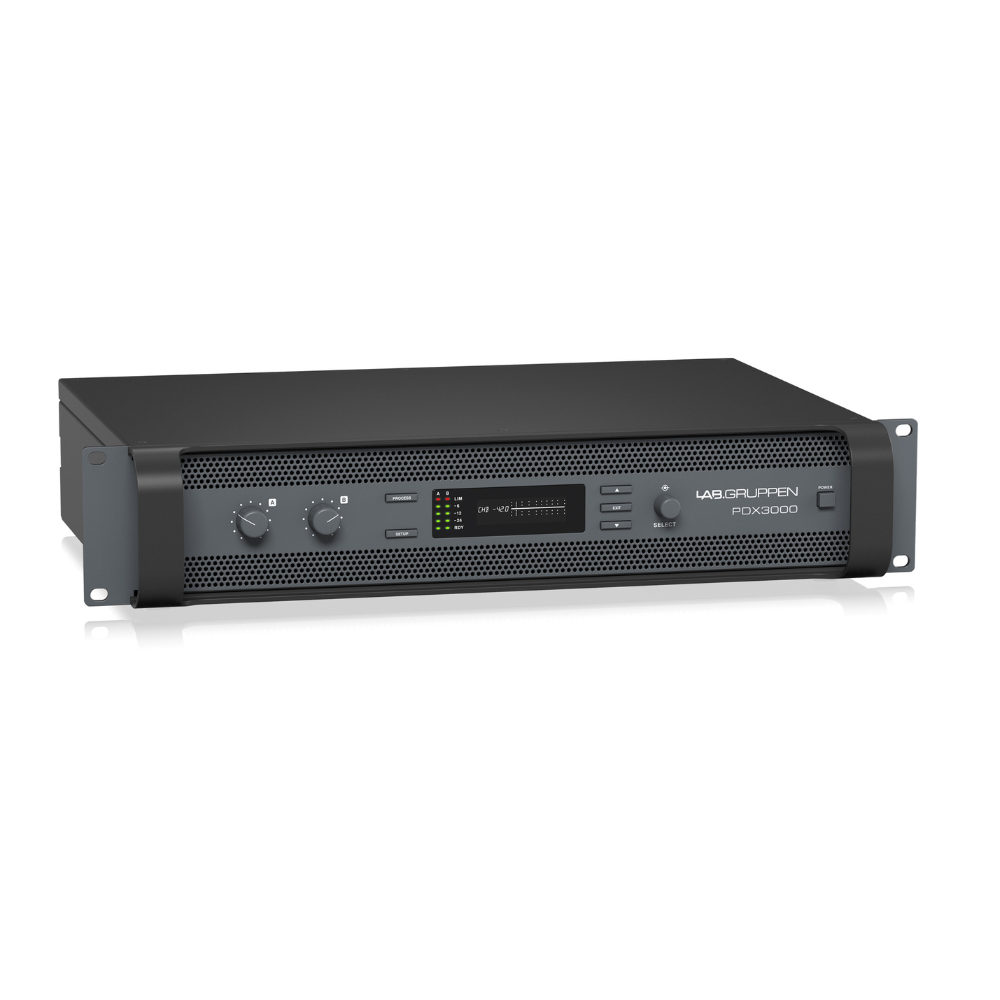

Lab Gruppen 3000W 2-Channel Speaker Amplifier [PDX3000]

Description

3,000-Watt, Two Channel Amplifier with DSP Control

Specifications:

  • Power: 2x 1000 W @ 2 Ohm, 2x 1500 W @ 4 Ohm, 2x 800 W @ 8 Ohm, 3000 W Peak
  • Class D power amp
  • DSP configuration on the front panel or via USB connection and PDX Controller software from a PC
  • LCD display
  • Adjustable gain, delay, crossover, EQ, limiter and dynamic EQ
  • Switch mode power supply (SMPS)
  • Comprehensive circuit protection against short circuits, DC and thermal overload
  • Speaker Protect Limiter for maximum level output and reliable driver protection
  • Pre-configured crossover settings for speaker configuration
  • Front panel locking functionality
  • Temperature controlled fan
  • Signal-to-noise ratio: > 90 dB
  • THD+N: 20 - 20,000 Hz @ 1 W <0.1%
  • Frequency response: 10 - 20,000 Hz, + 0.5 / -1 dB
  • Input impedance: 10 kO unbalanced, 20 kO balanced
  • Internal sample rate: 96 kHz
  • 2x XLR inputs
  • 2x 6.3 mm Jack inputs
  • 2x SpeakerTwist NLT4 outputs
  • Dimensions (H x W x D): 93 x 483 x 326 mm
  • Weight: 6.5 kg
  • Colour: Black
  • Designed and developed in Sweden



PDX3000

The PDX3000 is a two-channel amplifier with DSP Control and delivers 2 X 1500W of power for entry/mid-level live sound applications. PDX Series amplifiers employ our unique IDEEA Class D output stage that is ideally matched to the rated power output. To provide flexibility, each channel offers sufficient voltage swing and current capacity to drive loads in any impedance without any additional configuration. In order to have low thermal losses as well as a high voltage swing, the design is based on a permanently bridged output.

PDX Series

Lab.gruppen PDX Series power amplifiers are designed and built with competitive price, good performance and protection features in mind. Each amplifier draws on the engineering that has made Lab.gruppen the benchmark of quality for touring concert systems: exceptional sonic performance, rugged construction, proven reliability, and protection features that anticipate every unwelcome possibility.

Applications

PDX3000 is a proven and reliable Class-D amplifier and can provide superb audio performance in both background and foreground music sound systems. PDX3000 suits various applications such as entry/mid-level touring, live portable sound, hotels, bars and restaurants, houses of worship, performance spaces, and many more.

Manual Control

PDX3000 is equipped with Intuitive front panel user interface for easy setup and monitoring. Everything is controllable from the front panel, which is a great match for rental applications.

Inputs

Balanced XLR and TRS input connectors with optimized sensitivities, configuration and monitoring software through USB connection. This allows for easy set up using PDX Controller software and preset library.

PDX Controller Software

PDX Controller software allows the user to configure DSP functions such as crossover, parametric EQ, delay, limiter, dynamic EQ and input mixing, making the PDX series suitable for a broad range of installed and touring applications. The PDX series can be controlled through the usage of front panel or PDX Controller software by connecting to a PC with USB.

Speaker Outputs

All PDX Series amplifiers employ our unique IDEEA Class D output stage that is ideally matched to the rated power output. To provide flexibility, each channel offer sufficient voltage swing and current capacity to drive loads in any impedance without any additional configuration. In order to have low thermal losses as well as a high voltage swing, the design is based on a permanently bridged output.

Rugged and Lightweight Rack Mount Chassis

Appropriate and reliable power amplification is vital to any audio system. Inadequate or faulty power amplifiers could cause damage to loudspeakers, or in some cases to the power amplifiers themselves. To prevent damage or service interruptions, PDX Series amplifiers offer advanced features to protect both internal circuits and connected loads.



Product form

3,000-Watt, Two Channel Amplifier with DSP Control Specifications: Power: 2x 1000 W @ 2 Ohm, 2x 1500 W @ 4... Read more

SKU: 2007412000000

R 17,000.00 Incl. VAT

    • Guaranteed secure & safe checkout.
    • Free shipping on every order, no minimum required!
    • Over 20 years of professional experience
    • Pay securely afterwards with PayJustNow, PayFlex and PayFast
    • Shipped today? Order within: Nov 28, 2024 15:00:00 +0200
    Contact Us

    Have any questions? WhatsApp Us on 072 157 6825.

    Description

    3,000-Watt, Two Channel Amplifier with DSP Control

    Specifications:

    • Power: 2x 1000 W @ 2 Ohm, 2x 1500 W @ 4 Ohm, 2x 800 W @ 8 Ohm, 3000 W Peak
    • Class D power amp
    • DSP configuration on the front panel or via USB connection and PDX Controller software from a PC
    • LCD display
    • Adjustable gain, delay, crossover, EQ, limiter and dynamic EQ
    • Switch mode power supply (SMPS)
    • Comprehensive circuit protection against short circuits, DC and thermal overload
    • Speaker Protect Limiter for maximum level output and reliable driver protection
    • Pre-configured crossover settings for speaker configuration
    • Front panel locking functionality
    • Temperature controlled fan
    • Signal-to-noise ratio: > 90 dB
    • THD+N: 20 - 20,000 Hz @ 1 W <0.1%
    • Frequency response: 10 - 20,000 Hz, + 0.5 / -1 dB
    • Input impedance: 10 kO unbalanced, 20 kO balanced
    • Internal sample rate: 96 kHz
    • 2x XLR inputs
    • 2x 6.3 mm Jack inputs
    • 2x SpeakerTwist NLT4 outputs
    • Dimensions (H x W x D): 93 x 483 x 326 mm
    • Weight: 6.5 kg
    • Colour: Black
    • Designed and developed in Sweden



    PDX3000

    The PDX3000 is a two-channel amplifier with DSP Control and delivers 2 X 1500W of power for entry/mid-level live sound applications. PDX Series amplifiers employ our unique IDEEA Class D output stage that is ideally matched to the rated power output. To provide flexibility, each channel offers sufficient voltage swing and current capacity to drive loads in any impedance without any additional configuration. In order to have low thermal losses as well as a high voltage swing, the design is based on a permanently bridged output.

    PDX Series

    Lab.gruppen PDX Series power amplifiers are designed and built with competitive price, good performance and protection features in mind. Each amplifier draws on the engineering that has made Lab.gruppen the benchmark of quality for touring concert systems: exceptional sonic performance, rugged construction, proven reliability, and protection features that anticipate every unwelcome possibility.

    Applications

    PDX3000 is a proven and reliable Class-D amplifier and can provide superb audio performance in both background and foreground music sound systems. PDX3000 suits various applications such as entry/mid-level touring, live portable sound, hotels, bars and restaurants, houses of worship, performance spaces, and many more.

    Manual Control

    PDX3000 is equipped with Intuitive front panel user interface for easy setup and monitoring. Everything is controllable from the front panel, which is a great match for rental applications.

    Inputs

    Balanced XLR and TRS input connectors with optimized sensitivities, configuration and monitoring software through USB connection. This allows for easy set up using PDX Controller software and preset library.

    PDX Controller Software

    PDX Controller software allows the user to configure DSP functions such as crossover, parametric EQ, delay, limiter, dynamic EQ and input mixing, making the PDX series suitable for a broad range of installed and touring applications. The PDX series can be controlled through the usage of front panel or PDX Controller software by connecting to a PC with USB.

    Speaker Outputs

    All PDX Series amplifiers employ our unique IDEEA Class D output stage that is ideally matched to the rated power output. To provide flexibility, each channel offer sufficient voltage swing and current capacity to drive loads in any impedance without any additional configuration. In order to have low thermal losses as well as a high voltage swing, the design is based on a permanently bridged output.

    Rugged and Lightweight Rack Mount Chassis

    Appropriate and reliable power amplification is vital to any audio system. Inadequate or faulty power amplifiers could cause damage to loudspeakers, or in some cases to the power amplifiers themselves. To prevent damage or service interruptions, PDX Series amplifiers offer advanced features to protect both internal circuits and connected loads.
