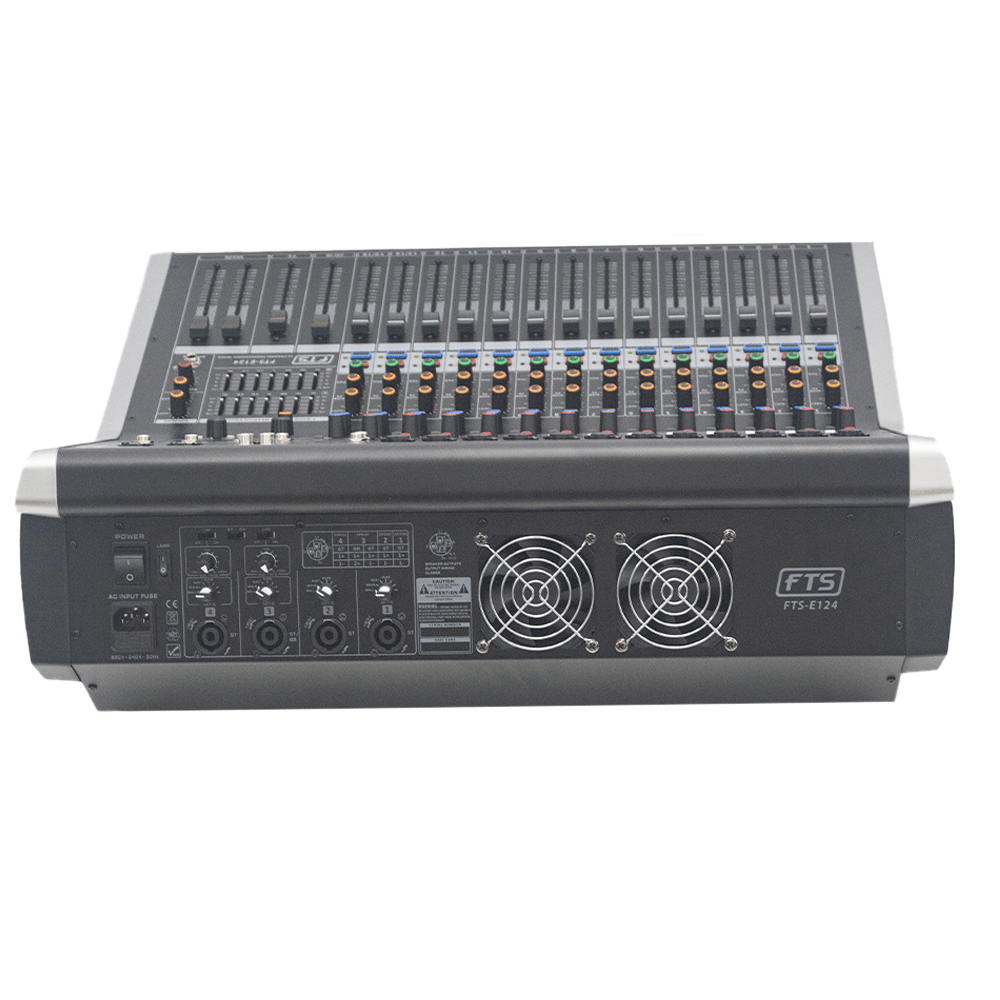

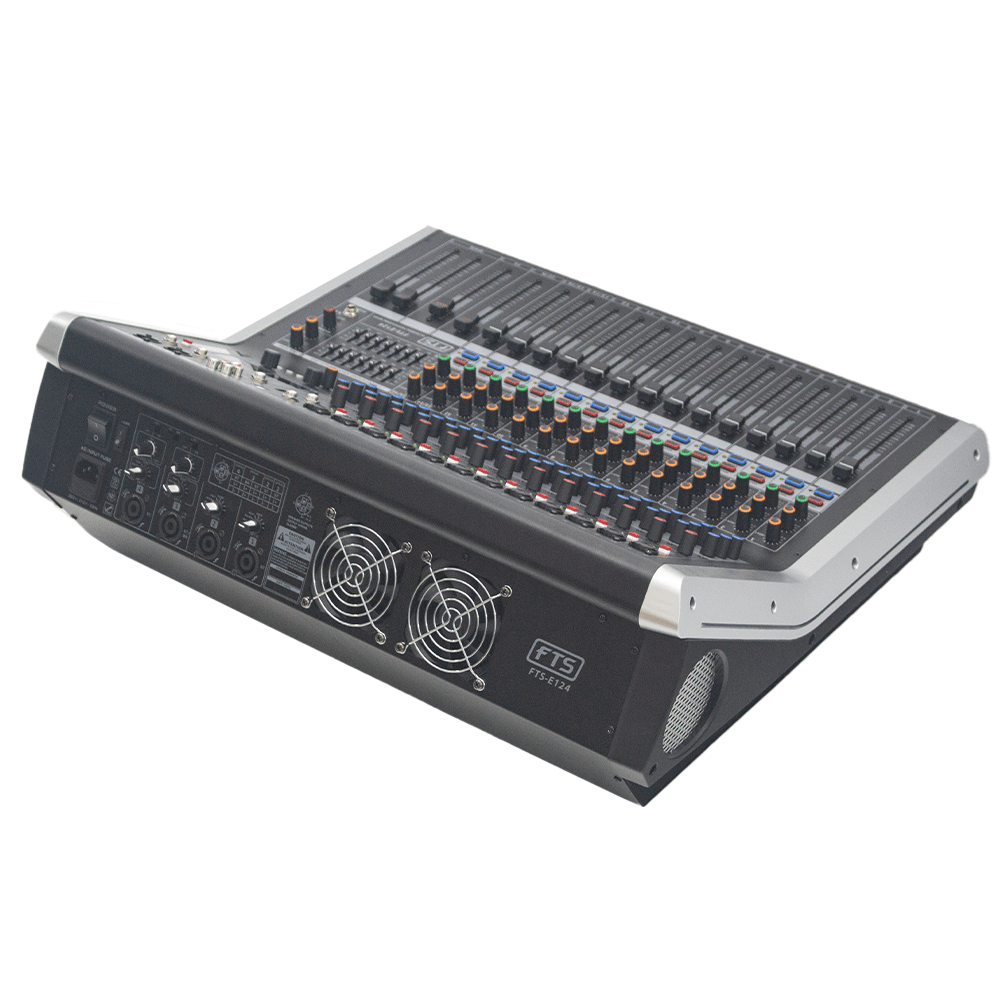

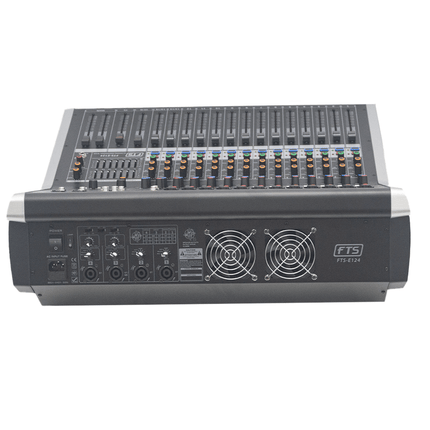

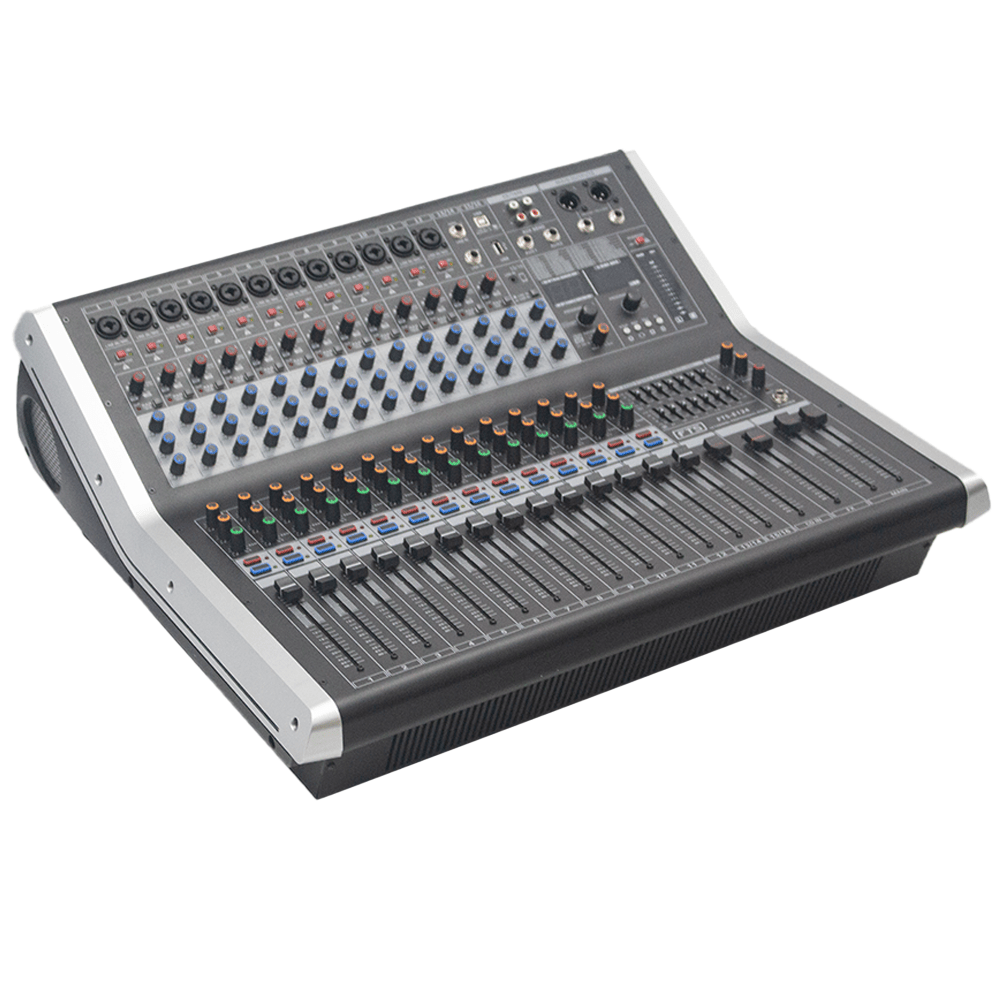

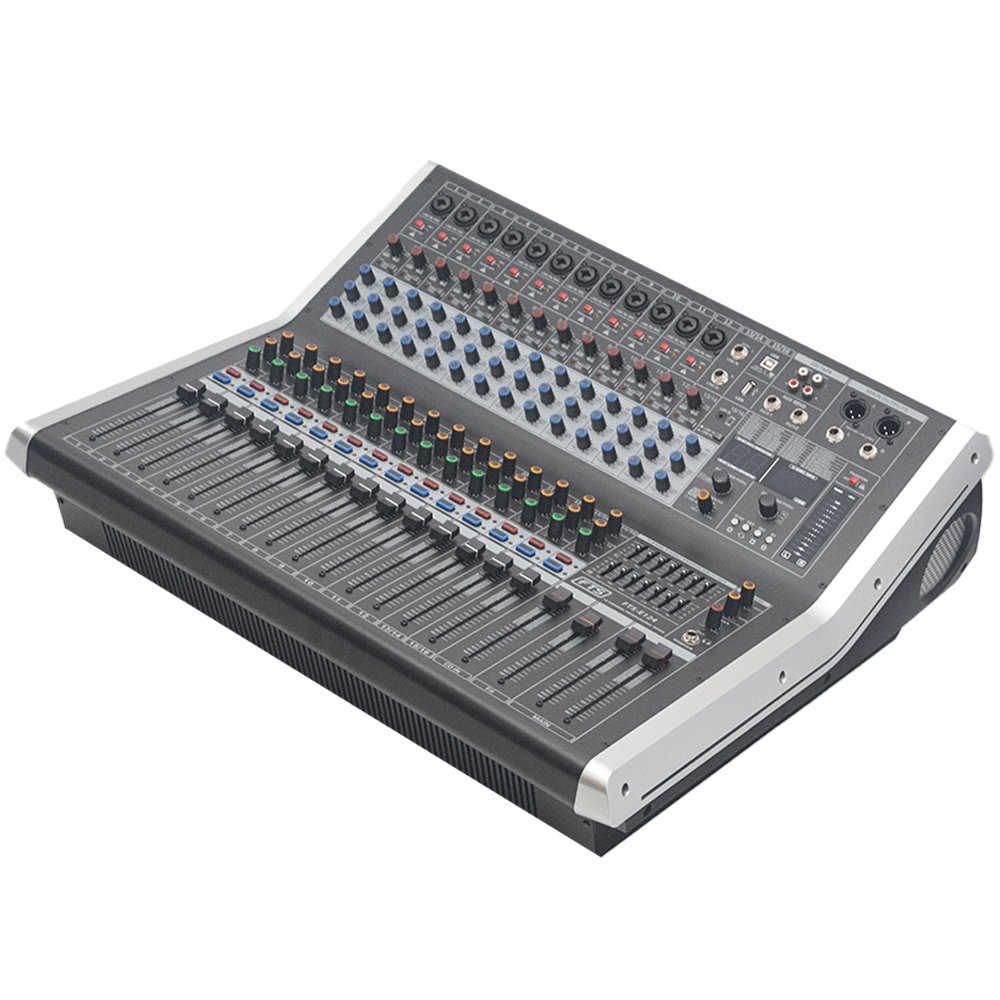

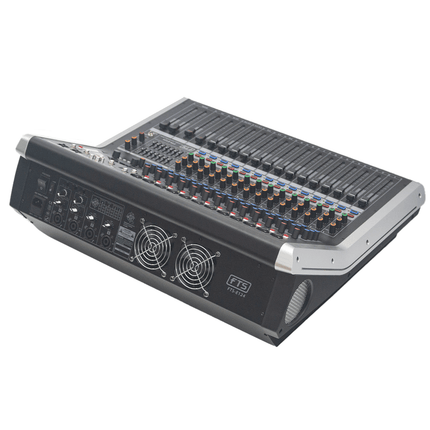

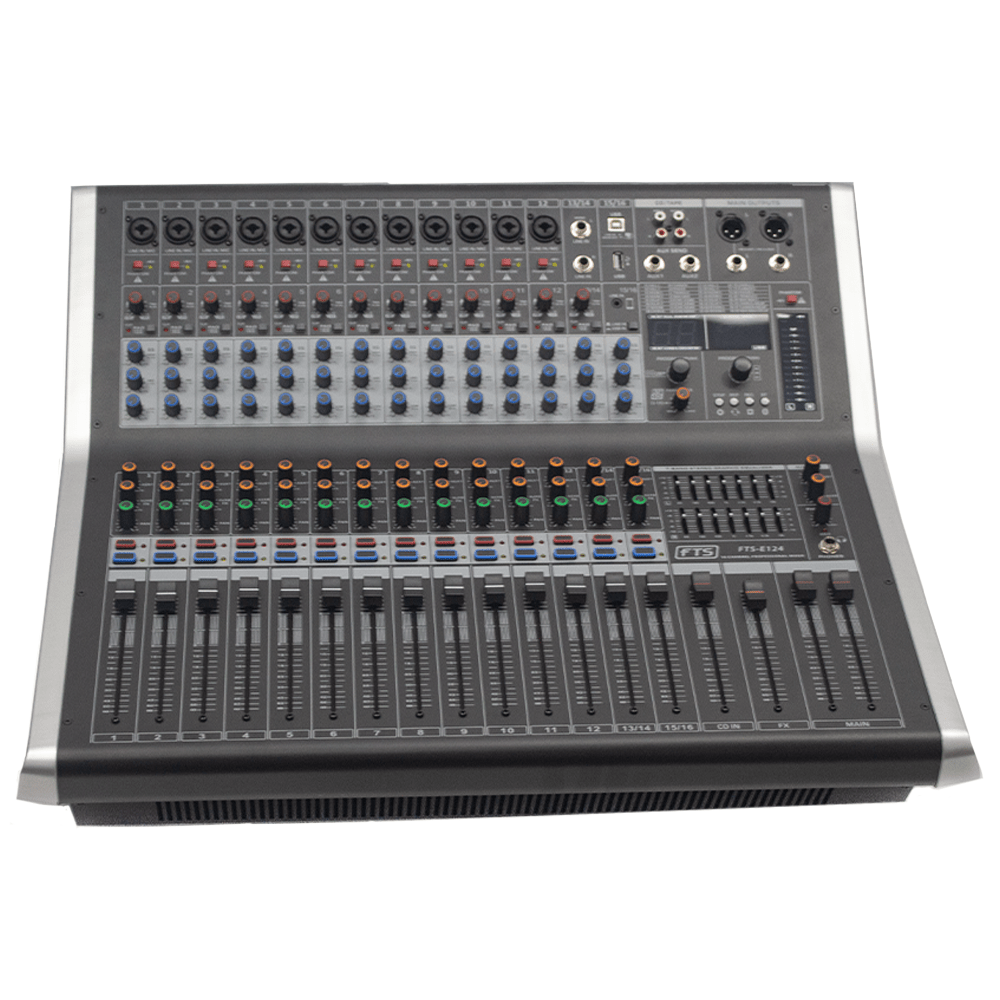

FTS 16Ch Powered Mixer 99Dsp With BT Player 600WX4 [FTS-E124]

Description

Fts 16Ch Mixer 99Dsp With BT Player 600WX4 [FTS-E124]

Description

The FTS 16CH Mixer offers professional-grade audio mixing with 99 DSP effects and Bluetooth playback. With 16 channels, it delivers exceptional sound control for live performances or studio recording. This mixer supports 600W x 4 power output, making it perfect for large setups and diverse sound applications.

Specifications

Microphones Inputs

·       Type: XLR, electronically balanced, discrete input circuit.

Mic E.I.N (20Hz-20kHz)

·       @0 Ω source resistance – 134dB/135.7dB A-weighted

·       @50 Ω source resistance – 131dB/133.3dB A-weighted

·       @150 Ω source resistance – 129dB/130.5dB A-weighted

·       Frequency response: <10Hz – 150kHz(-1dB); <10Hz – 200kHz(-3dB)

Line Input

·       Type: ¼” TRS connector electronically balanced

·       Impendance: approximately 20kΩ balanced, 10kΩ unbalanced

·       Gain Range: +10 to -40dB

Fade-out attenuation

·       Main fader: 90dB

·       Channel muted: 89dB

·       Channel fader closed: 89dB

Frequency Response

Microphone input to main out

·       <10Hz -90kHz; +0dB/-1dB

·       <10Hz-160kHz; +0dB/-3dB

Stereo Inputs

·       Type: ¼” TRS connector , electronically balanced

·       Impendance: approximately 20kΩ

EQ Mono channels

·       Low: 80Hz/15dB

·       Mid: 3kHz/15dB

·       High: 12kHz/15dB

EQ stereo channels

·       Low: 80Hz/15dB

·       Mid: 3kHz/15dB

·       High: 12kHz/15dB

Aux sends

·       Type: ¼” TRS connector , electronically balanced

·       Impendance: approximately 120Ω

Stereo Aux Returns

·       Type: ¼” TRS connector , electronically balanced

·       Impendance: approximately 20kΩ balanced, 10kΩ unbalanced

Main Mix System Data

Power Supply

Main Voltage: 230V;50/60Hz

Power Consumptions

Fuse: 230V, :T 12 A 250V

Main connection: Standard IEC receptacle

What's in the Box

  • 1 x 16Ch Mixer
  • User Manual
  • Power Cable













Product form

Fts 16Ch Mixer 99Dsp With BT Player 600WX4 [FTS-E124] Description The FTS 16CH Mixer offers professional-grade audio mixing with 99... Read more

SKU: 2012154000000

R 10,000.00 Incl. VAT

    • Guaranteed secure & safe checkout.
    • Free shipping on every order, no minimum required!
    • Over 20 years of professional experience
    • Pay securely afterwards with PayJustNow, PayFlex and PayFast
      Contact Us

      Have any questions? WhatsApp Us on 072 157 6825.

      Description

      Fts 16Ch Mixer 99Dsp With BT Player 600WX4 [FTS-E124]

      Description

      The FTS 16CH Mixer offers professional-grade audio mixing with 99 DSP effects and Bluetooth playback. With 16 channels, it delivers exceptional sound control for live performances or studio recording. This mixer supports 600W x 4 power output, making it perfect for large setups and diverse sound applications.

      Specifications

      Microphones Inputs

      ·       Type: XLR, electronically balanced, discrete input circuit.

      Mic E.I.N (20Hz-20kHz)

      ·       @0 Ω source resistance – 134dB/135.7dB A-weighted

      ·       @50 Ω source resistance – 131dB/133.3dB A-weighted

      ·       @150 Ω source resistance – 129dB/130.5dB A-weighted

      ·       Frequency response: <10Hz – 150kHz(-1dB); <10Hz – 200kHz(-3dB)

      Line Input

      ·       Type: ¼” TRS connector electronically balanced

      ·       Impendance: approximately 20kΩ balanced, 10kΩ unbalanced

      ·       Gain Range: +10 to -40dB

      Fade-out attenuation

      ·       Main fader: 90dB

      ·       Channel muted: 89dB

      ·       Channel fader closed: 89dB

      Frequency Response

      Microphone input to main out

      ·       <10Hz -90kHz; +0dB/-1dB

      ·       <10Hz-160kHz; +0dB/-3dB

      Stereo Inputs

      ·       Type: ¼” TRS connector , electronically balanced

      ·       Impendance: approximately 20kΩ

      EQ Mono channels

      ·       Low: 80Hz/15dB

      ·       Mid: 3kHz/15dB

      ·       High: 12kHz/15dB

      EQ stereo channels

      ·       Low: 80Hz/15dB

      ·       Mid: 3kHz/15dB

      ·       High: 12kHz/15dB

      Aux sends

      ·       Type: ¼” TRS connector , electronically balanced

      ·       Impendance: approximately 120Ω

      Stereo Aux Returns

      ·       Type: ¼” TRS connector , electronically balanced

      ·       Impendance: approximately 20kΩ balanced, 10kΩ unbalanced

      Main Mix System Data

      Power Supply

      Main Voltage: 230V;50/60Hz

      Power Consumptions

      Fuse: 230V, :T 12 A 250V

      Main connection: Standard IEC receptacle

      What's in the Box

      • 1 x 16Ch Mixer
      • User Manual
      • Power Cable
