Celto Acoustique 18'' 1500W Subwoofer [18SW1500-8]

Description

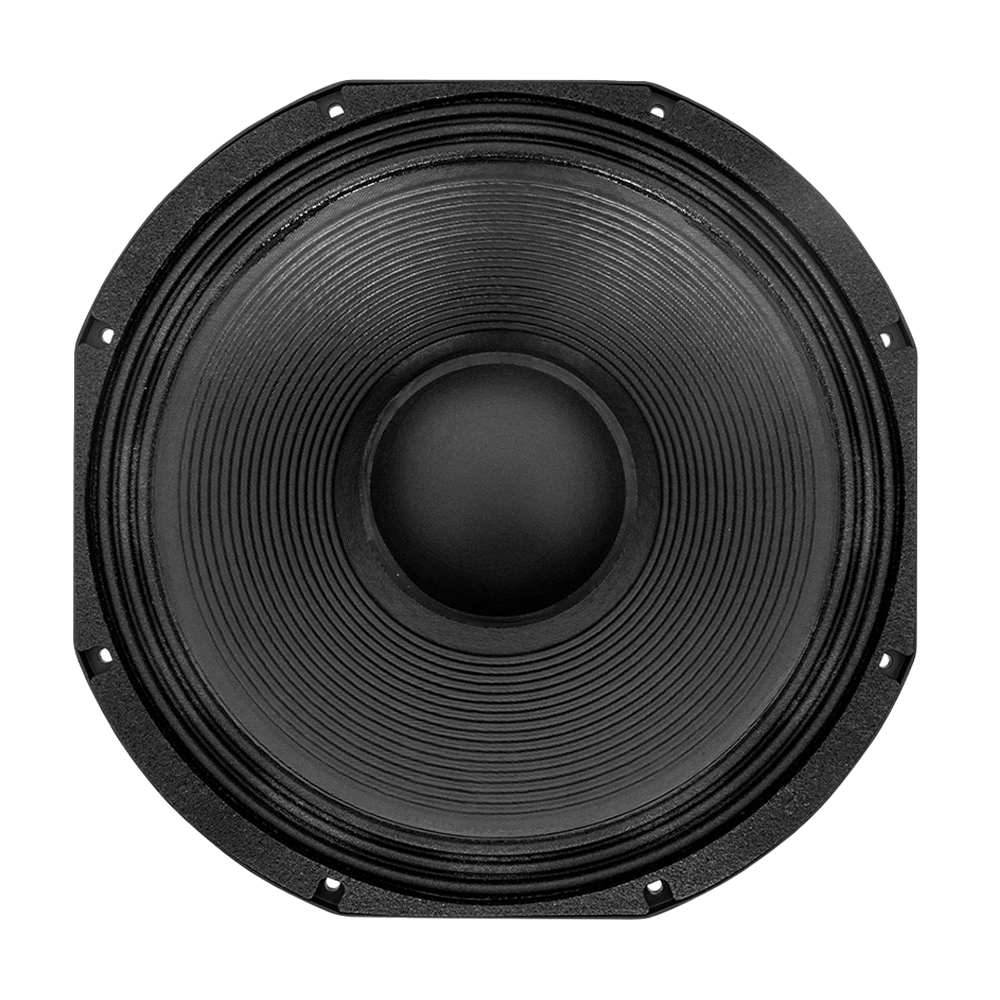

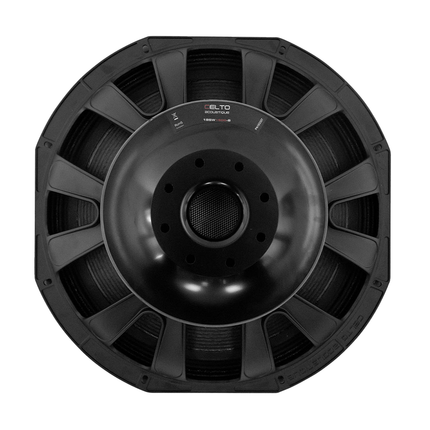

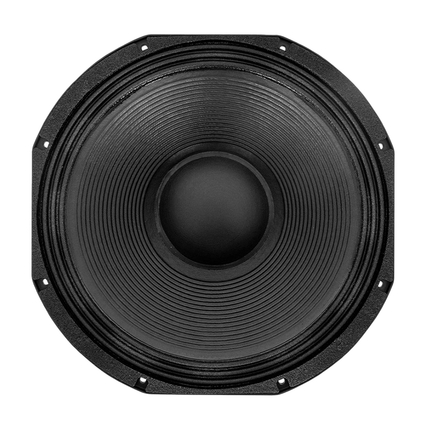

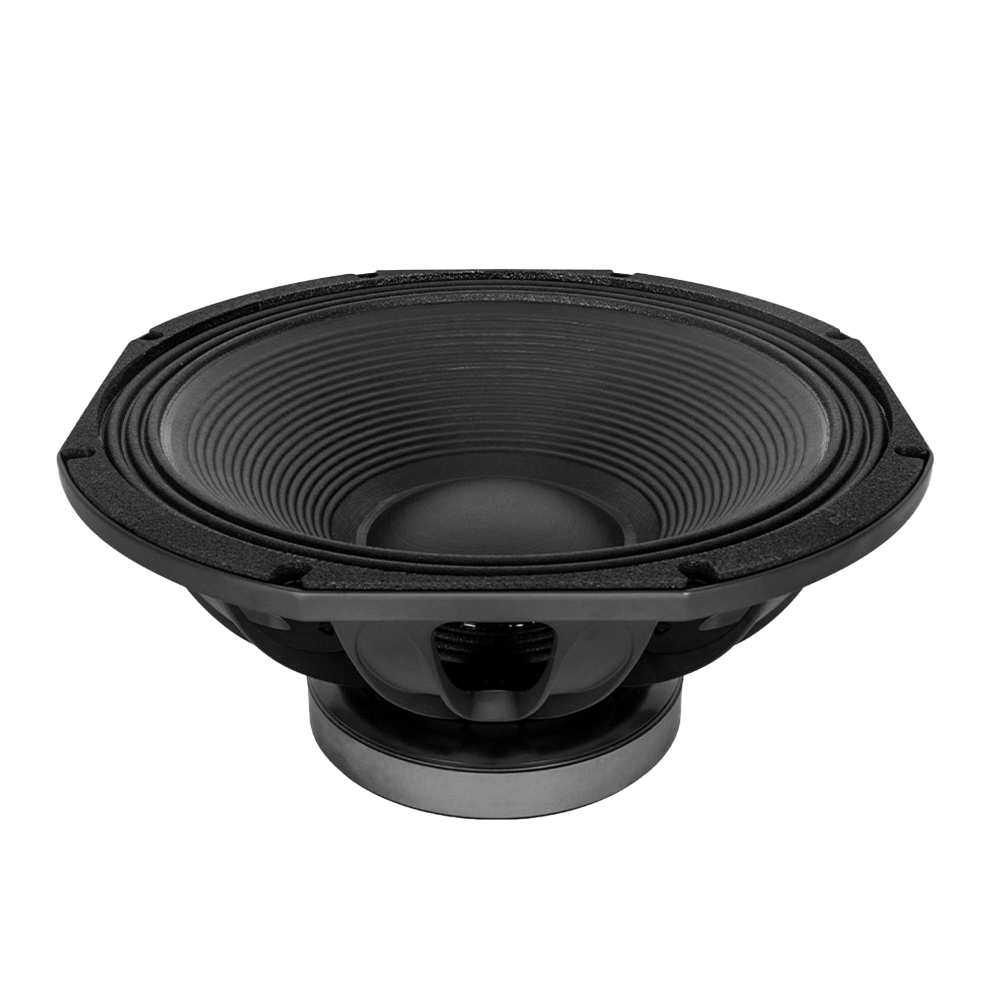

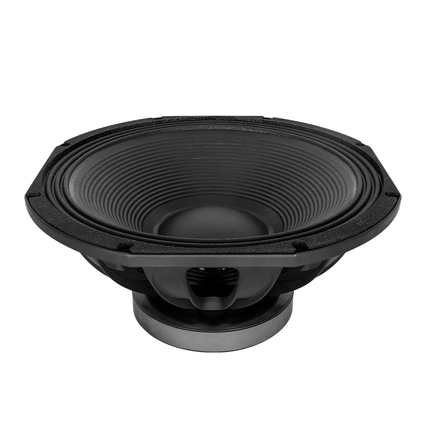

CELTO Acoustique 18SW1500-8 Loose Speaker

Description

The SW series of subwoofers are the flagship of the CELTO range of loose bass transducers. There has been absolutely no compromise in design, selection of the materials used, manufacturing and the QC process.

The 18SW1500 is a beautifully finished ultra-thick powder coated aluminum die-cast woofer, with a solid <0.1% carbon CNC machined steel T-Yoke, French bobbin with Japanese wire 240°C voice coil, Japanese / USA damper, water resistant fiber loaded Canadian pulp paper cone, high grade Y35 flaw-free ferrite magnet and a robust 5mm square spring terminal connecting block.

Features

Ultra-long excursion
Split winding voice coil
DCS (Deflective cooling system)
Water resistant Kevlar® loaded paper cone
Optimized parameters for compact cabinet designs

Specifications

Nominal diameter: 460mm (18inch)
Nominal impedance: 8 ohms
Power handling: 1500W RMS (AES Standard)
Sensitivity: 97dB / 1W / 1m
Voice coil diameter: 4 inch (100mm)
Voice coil height Hvc: 34mm
Voice coil air gap Hag: 15mm
Xmax (Hvc-Hag)/2 + Hag/4: +/- 13.25mm
Xmech (peak-peak): 62mm
Voice coil winding: 2 layer IN/OUT
Voice coil material: 240°C Thermal Class Copper
Voice coil former: DUPONT® GFB  fiberglass
Suspension: Triple roll, impregnated fabric
Spider: Dual with silicon damping, NOMEX®
Cone: Fiber loaded, waterproof treated paper

Chassis: Die-cast aluminum
Magnet: 230mm diameter Y35 ferrite

Mounting & Shipping

Overall Diameter: 470mm
Bolt circle diameter: 445mm
Baffle cutout diameter: 422mm
Flange & gasket thickness: 13mm
Overall depth: 225mm
Net weight: 15.5Kg
Shipping weight: 18Kg
Shipping dimensions: 460x460x280mm

T&S Parameters

F(s): 34Hz
Q(ms): 9.763
V(as): 182 liters
M(ms): 248 grams
R(ms): 5.553 Kg/s
S(d): 1225 sq.c+C5m
V(d): 1.716 liters
R(e): 5.75 ohms
Q(es): 0.406
C(ms): 0.0853 mm/N
Q(ts): 0.39
L(e): 1KHz: 1.98mH
BL: 27.5
n(0): 1.8%

Product form

CELTO Acoustique 18SW1500-8 Loose Speaker Description The SW series of subwoofers are the flagship of the CELTO range of loose... Read more

SKU: 2013923000000

R 4,495.00 Incl. VAT

Request a Quote

    • Guaranteed secure & safe checkout.
    • Free shipping on every order, no minimum required!
    • Over 20 years of professional experience
    • Pay securely afterwards with PayJustNow, PayFlex and PayFast
    Contact Us

    Have any questions? WhatsApp Us on 072 157 6825.
